Compose queries to retrieve information from your database not accessible through standard reports.
In the Main Menu, click Reports, User Query.
Alternatively, in Standard Reports, click User Query.
When opened from the Reports menu, this window is non-modal. When opened from Standard Reports, this window is modal.
See our videos: QuickTip: Find and Run a Query in Open Dental and Custom Query Process Overview.
Users must have the User Query permission to run and change variables in released user queries.
Users must have the User Query Admin permission to write, edit, run, save, and delete queries.

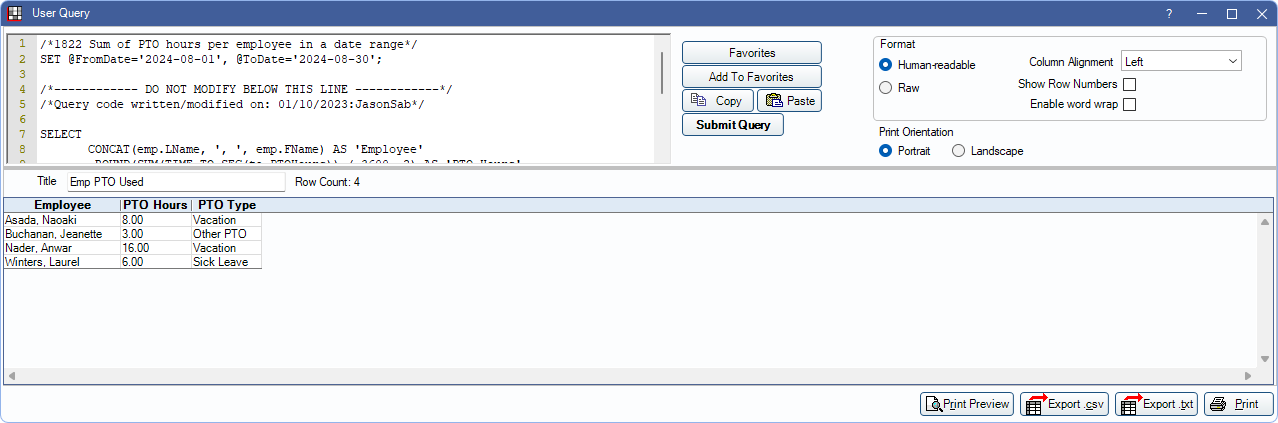

Running a Query
Text Box: Displays the query text. If you have User Query Admin permission, you can enter text directly in this box. If you do not, it is disabled.
- Right-Click Options: Right-click in the user query text box for additional options.
- Cut: Delete selected text.
- Copy: Copy selected text to clipboard.
- Paste: Paste clipboard text contents into text box.
- Select All: Select all text in the text box.
- Comment Selection: Designate selected text as a comment in the query. Selected text will not be run as part of the query.
- Remove Comment from Selection: Removes comment designation from selected text. Selected text will now be run as part of the query.
Favorites: Open Query Favorites.
Add to Favorites: Add the query text currently in the text box to Query Favorites.
Copy: Copy the query text in the text box to the clipboard.
Paste: Paste any text currently on the clipboard into the text box.
Submit Query: Run the query text currently in the text box. When long queries are run, the Submit button will change to Stop Execution. Click to cancel a large query that may take a long time to run.
Change settings to determine how query results are displayed.
Format: Select how to view the results.
- Human-readable: This is an easy-to-read format. Some column names that are used in our tables may display as follows:
- Dates may be converted to standard format.
- Dollar amounts may receive the extra zeros and be right aligned.
- Enumerations may convert (built-in lists like areas of the mouth, patient status, gender, etc.).
- Definitions linked to the definition table get converted.
- Provider numbers will show the provider's abbreviation.
- Patient numbers will show patient name.
- True/false: Boolean values will show true/false.
- Raw Format: In this format, the results are not as easy to read, for example there may be meaningless numbers or no extra zeros on dollar amounts.
Column Alignment: Choose the alignment of the displayed query results.
Show Row Numbers: Choose to number query rows.
- Checked: Each row of query results is numbered.
- Unchecked: Query rows are not numbered.
Enable word wrap: Choose to wrap long text that may otherwise be cut off.
- Checked: Query results exceeding column width will be wrapped onto a new line making the row wider.
- Unchecked: Query results exceeding column width will be cut off.
Title: The title of the query in the text box, if one exists. When running a query from Query Favorites, this box will prefill with the title saved to the favorite. Users can type into this box to label the query before printing.

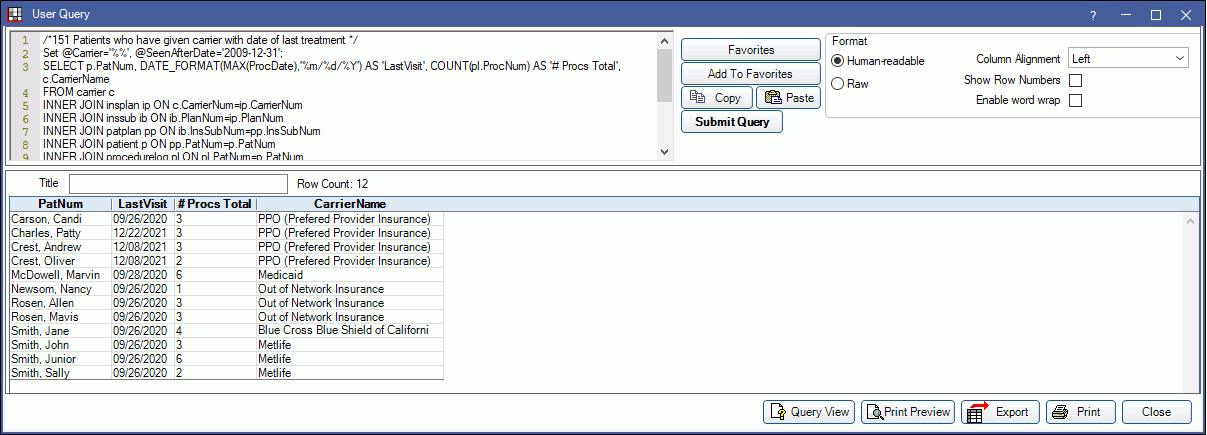

Query Results: By default, the results will display in human-readable format. Columns vary based on the query being run. If a column header is prefaced with a $, the cells are always formatted as a dollar amount.
- Display options:
- Right-click options:
Once the table displays the way you want it, there are several options:
- To include a title/header on printed query results, save the query to your Query Favorites, and enter the title. Then, run the query again.
- Advanced users can run queries directly on the database from outside programs using ODBC or other methods.
- To also run command queries, user must also have the Command Query permission.
- If using Random Primary Keys, queries with CREATE TABLE or DROP TABLE syntax can only run on the computer named as the User Query Server on the Replication Setup window (Replication).
Find a Query
- Query Favorites: Access a customizable list of queries that are used often in your practice. Designated users can only run released queries. User Query Admin permission is needed to add, edit, and delete query favorites, as well as control which queries can be run by others.
- Query Examples: Search through more than 1000 queries that have been commissioned by our customers, then copy/paste into Query Favorites or the Query window.
- Custom Queries: For a fee, Open Dental Support can create a custom query.
- Write your own query, then run and/or save it to your favorites.
Security: Access to queries is controlled by user Security Permissions.
- User Query: User can only run released queries from the Reports, User Query submenu.
- User Query Admin: User can run queries, and edit, add and delete query favorites.
- Command Query: User can run SQL commands (non-select queries)
Programming Resources, Database Documentation has a list of tables and columns in the Open Dental database.
