NewTom NNT Bridge

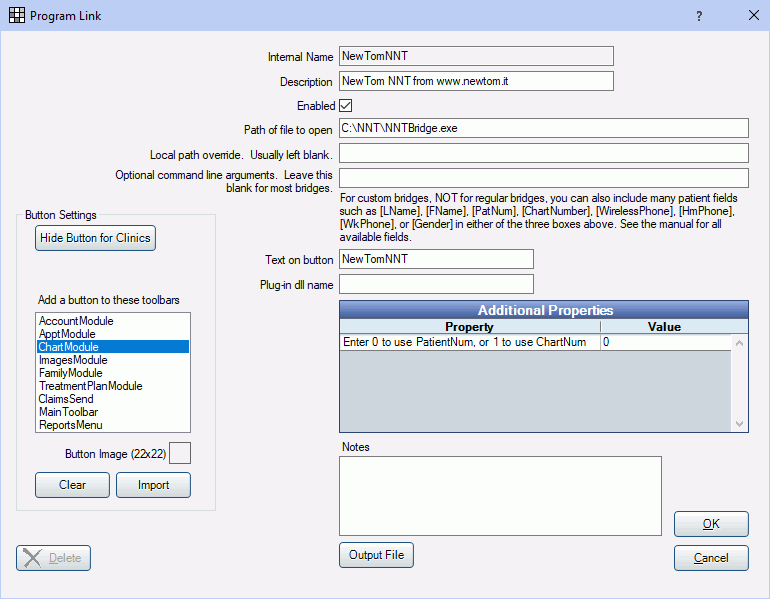

In the Main Menu, click Setup, Program Links. Double-click on NewTom NNT from www.newtom.it.

NewTom NNT is a digital imaging technology. Website: https://www.newtom.it/en/dentale/.

To enable the bridge:

  1. Check the Enabled box.
  2. Verify the Path of file to open.
  3. Double-click on Additional Properties to change settings. Use the PatNum (enter 0) or ChartNum (enter 1) as the patient ID.
  4. Set up a clickable bridge button.
    1. Under Add a button to these toolbars, highlight where to display the button.
    2. Enter the Text on button.
    3. (Optional) Import an image to show on the button (22 x 22 pixels).
  5. If using clinics, click Hide Button for Clinics. Select which clinics the button should display on.
  6. Click Save.

Technical Details

Optional command line arguments passed in for this bridge are [PatNum/ChartNum], [FName], [LName], [d,M,yyyy], [SSN].
