In the Main Menu, click Setup, Program Links, PreXion Acquire.

PreXion is an imaging software. Website: www.prexion.com.

The PreXion Acquire bridge allows users to take new images. To view existing images, see PreXion Bridge.

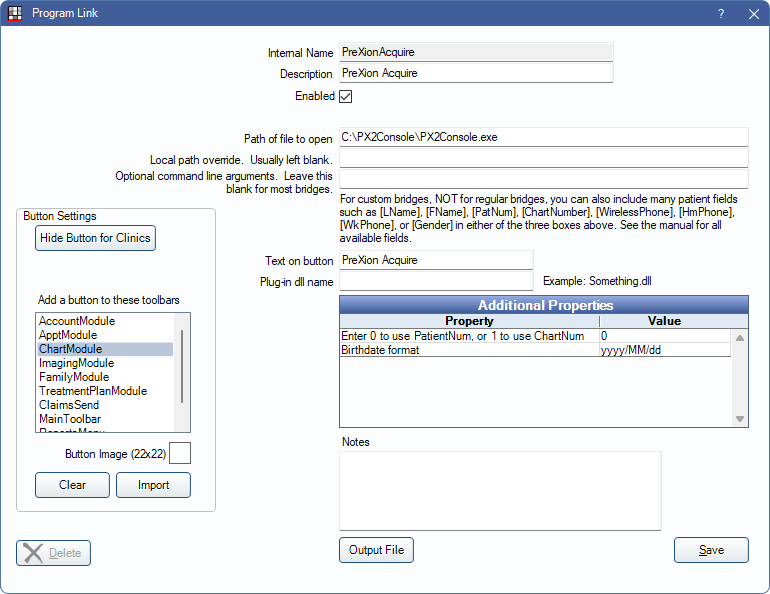

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Path of file to open: The location of the program executable. Defaults to C:\PX2Console\PX2Console.exe.
• Additional Properties: Double-click a row to change settings.
  • Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
  • Birthdate format: Enter the birthdate format used. Defaults to yyyy/MM/dd.
• Text on button: (Optional) Enter the text that is displayed for the bridge button.
• Button Settings: Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.
