In the Main Menu, click Setup, Program Links. Double-click on Pixel by Digital Doc.

Pixel is a dental imaging application. Website: https://digi-doc.com/.

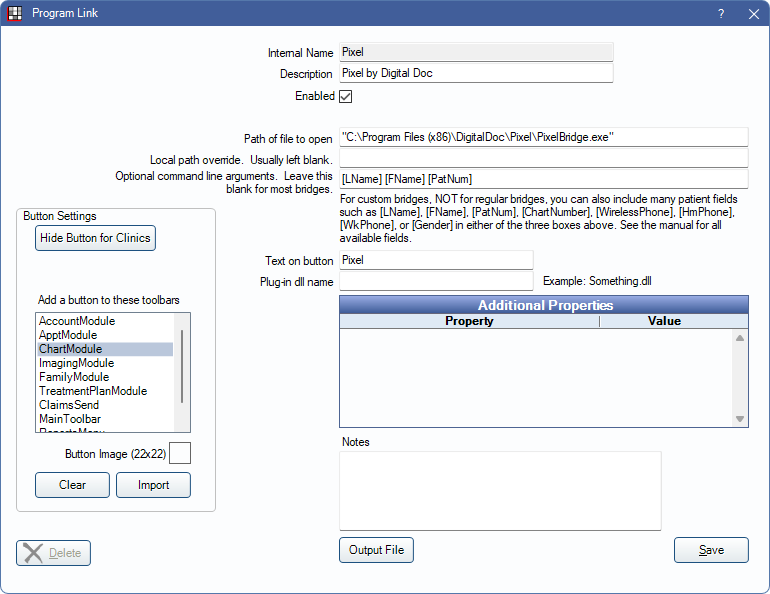

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Path of file to open: The location of the program executable. Defaults to "C:\Program Files (x86)\DigitalDoc\Pixel\PixelBridge.exe".
• Optional command line arguments.: Command line arguments that affect the behavior of the bridge. Defaults to [LName] [FName] [PatNum].
• Text on button: (Optional) Enter the text that is displayed for the bridge button.
• Button Settings: Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.
