Patient Gallery Bridge
In the Main Menu, click Setup, Program Links. Double-click on PatientGallery from scican.com.
Patient Gallery is an imaging system. Also known as ImageFX. Website: www.patientgallery.com.
Note: Older installations of Open Dental list this bridge as ImageFX from scican.com.

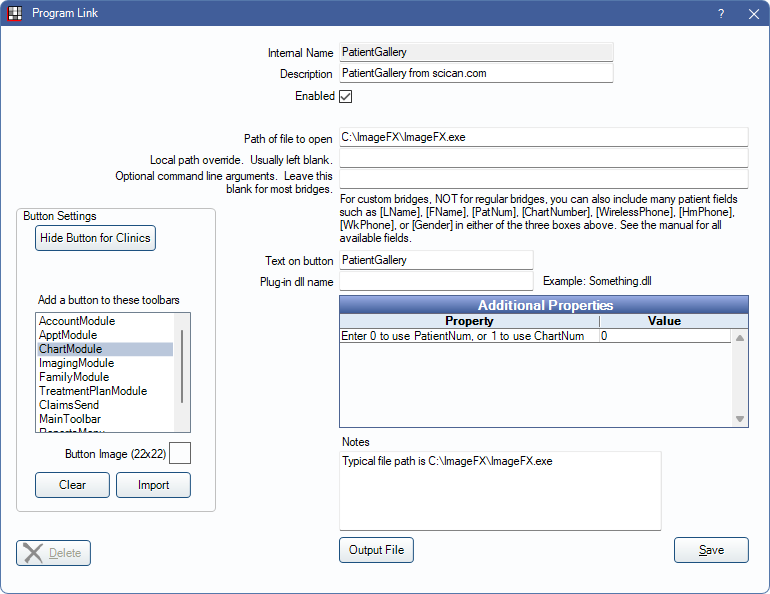

Bridge Setup
Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:
- Enabled: Check to enable this bridge.
- Path of file to open: The location of the program executable. Defaults to C:\ImageFX\ImageFX.exe.
- Additional Properties: Double-click a row to change settings.
- Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
- Text on button: (Optional) Enter the text that is displayed for the bridge button.
- Button Settings: Determine the visual behavior of the bridge button.
- Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
- Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
- Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).
Click Save to keep changes.
Technical Details
The following information is passed to Patient Gallery using command line parameters during a bridge attempt: PatNum or ChartNumber, first name, last name, SSN, and date of birth. Any semicolons present in any of these fields are removed before sending to Patient Gallery.
