In the Main Menu, click Setup, Program Links. Double-click on QuickVision from owandy.com.

Owandy is an imaging software. Website: www.owandy.com.

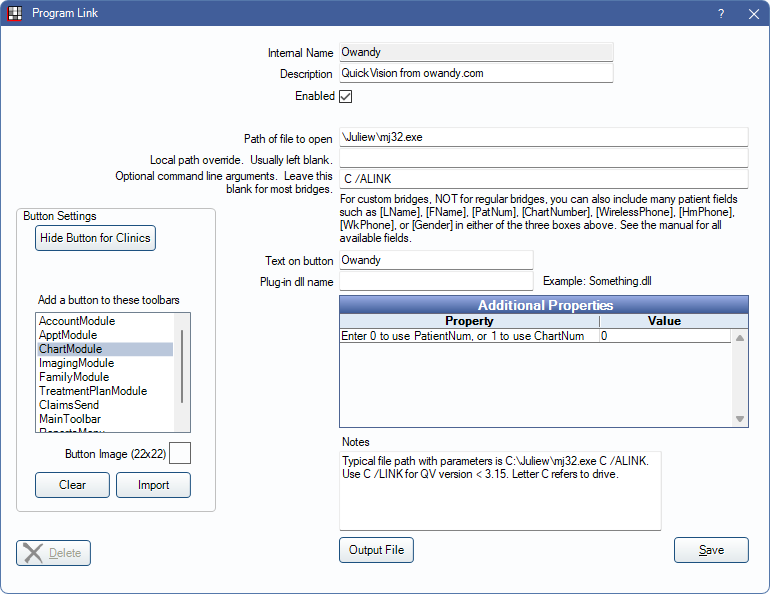

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Path of file to open: The location of the program executable. Defaults to \Juliew\mj32.exe.
• Optional command line arguments.: Command line arguments that affect the behavior of the bridge. Defaults to C /ALINK.
• Additional Properties: Double-click a row to change settings.
  • Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
• Text on button: (Optional) Enter the text that is displayed for the bridge button.
• Button Settings: Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.

Technical Details

This bridge launches Quick Vision using command line arguments, then passes some data to Quick Vision using Windows API calls. Open Dental passes the patient PatNum, last name, and first name to Quick Vision. Owandy must be opened in the background for the bridge to launch properly.
