In the Main Menu, click Setup, Program Links. Double-click on Ortho Insight 3d from http://www.motionview3d.com.

Ortho Insight 3D is an imaging software. Website: http://motionview3d.com

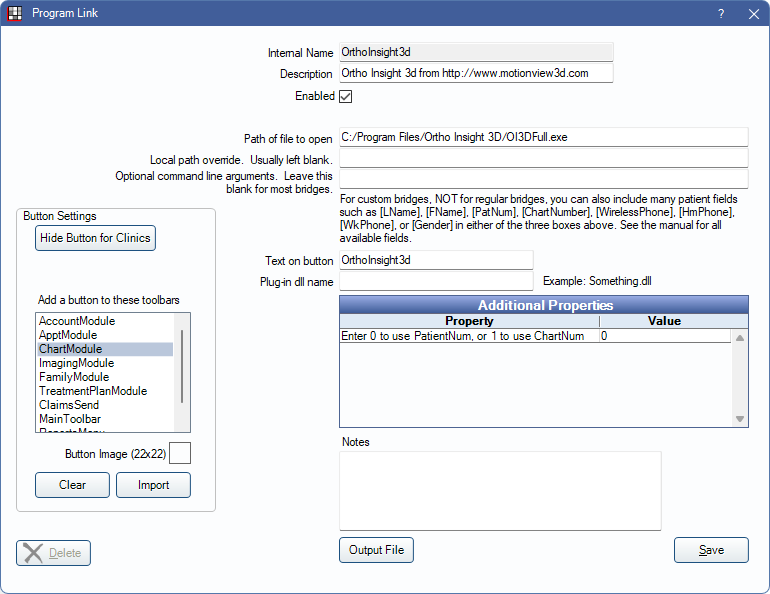

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Path of file to open: The location of the program executable. Defaults to C:\Program Files\Ortho Insight 3D\OI3DFull.exe.
• Additional Properties: Double-click a row to change settings.
  • Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
• Text on button: (Optional) Enter the text that is displayed for the bridge button.
• Button Settings: Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.
