In the Main Menu click Setup, Program Links. Double-click on iRYS from www.cefladental.com.

iRYS is an imaging software. Website: https://www.cefla.com/en/.

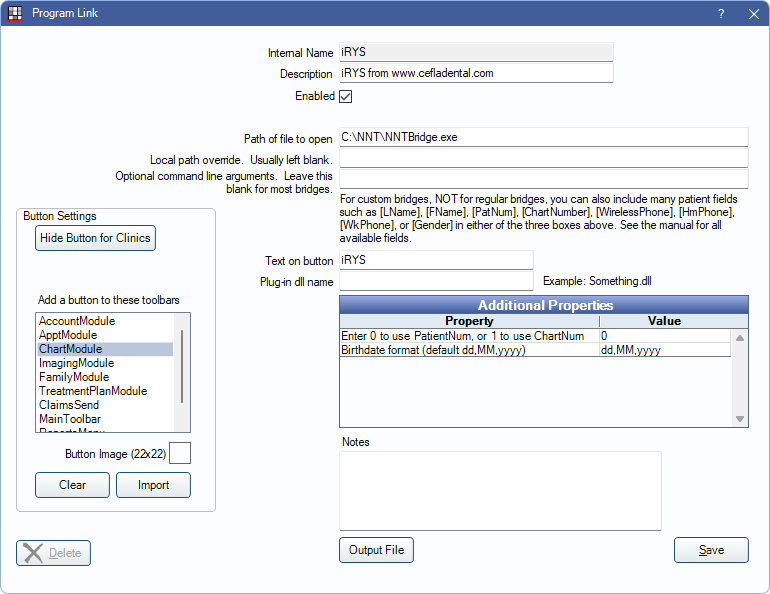

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Path of file to open: The location of the program executable. Defaults to C:\NNT\NNTBridge.exe.
• Additional Properties: Double-click a row to change settings.
  • Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
  • Birthdate format (default dd,MM,yyyy): Enter birthdate format.
• Text on button: (Optional) Enter the text that is displayed for the bridge button.
• Button Settings: Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.

Technical Details

This bridge is the same as the RayMage bridge, but with birthdate and sex added to the command line arguments.

/PATID "123456" /NAME "John" /SURNAME "Smith" / BDATE "dd,MM,yyyy" / SEX "M"

The name and surname arguments will be the patient's first and last name with all spaces and quotes removed from them. If the patient ID already exists, then the corresponding patient folder is opened.

If the patient ID does not exist, then a new patient folder is created and opened. When a patient ID already exists and the patient name passed in does not match (e.g., when a patient name is updated), then a message box displays asking the user if they want to change the patient name and the patient folder corresponding to the existing ID.
