In the Main Menu, click Setup, Program Links. Double-click on i-Dixel.

i-Dixel is digital imaging technology. Website: https://www.morita.com/america/en/products/diagnostic-and-imaging-equipment/imaging-software/i-dixel/. The i-Dixel bridge requires additional software called ToiView from Morita. Contact Morita to install, https://www.morita.com/america/en/contacts/.

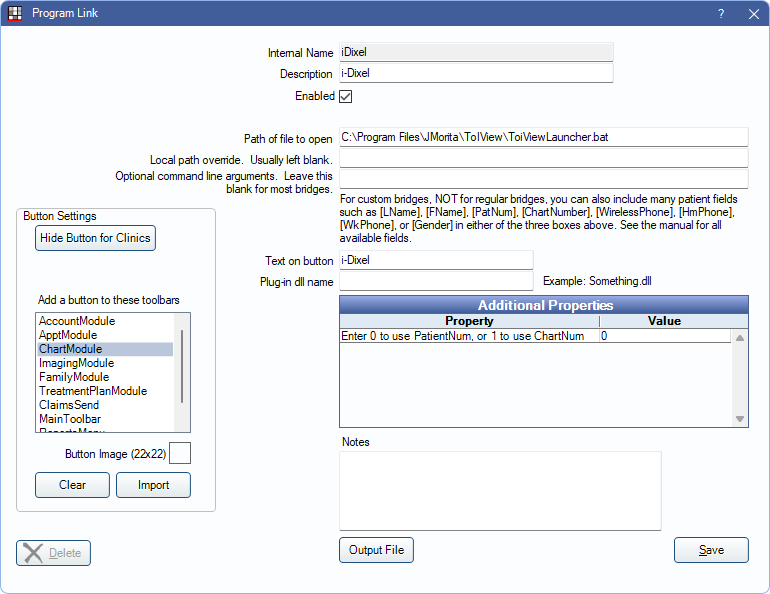

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Path of file to open: The location of the program executable. Defaults to C:\Program Files\JMorita\TOIView\ToiViewLauncher.bat.
• Additional Properties: Double-click a row to change settings.
  • Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
• Text on button: (Optional) Enter the text that is displayed for the bridge button.
• Button Settings: Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.

Technical Details

Optional command line arguments passed in for this bridge are [PatNum/ChartNum] [FirstName] [Last Name] [Gender].
