In the Main Menu, click Setup, Program Links. Double-click on Dr. Ceph from www.fyitek.com.

Dr. Ceph is an orthodontic imaging software. Website: https://fyitek.com/software/drceph.

Bridge Setup

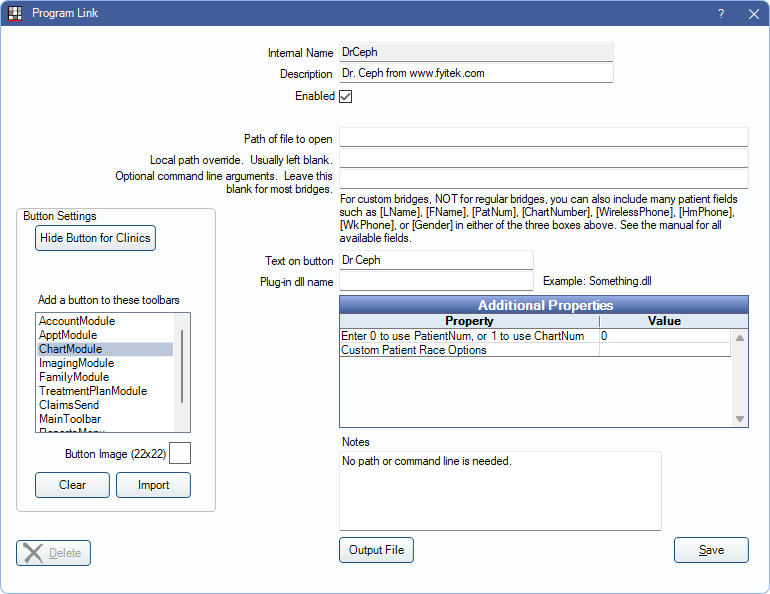

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Additional Properties: Double-click a row to change settings.
  • Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
  • Custom Patient Race Options: Customize race options when opening a patient. See the following section for details.
• Text on button: (Optional) Enter the text that is displayed for the bridge button.
• Button Settings: Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.

Technical Details

Custom Patient Race Options:
Enter race options to choose from, separating each by a comma. Dr Ceph is programmed with White, Black, Hispanic, and Asian. Two custom options are allowed as well.

When launching Dr Ceph, a window launches where race, treatment phase, x-ray location, photo location, and x-ray date can be entered.
