DentalEye Bridge
In the Main Menu, click Setup, Program Links. Double-click on DentalEye.
DentalEye is an imaging software. This bridge can also be used for MiPACS Bridge. Website: http://www.dentaleye.com/.
Note: To use the bridge, DentalEye version 3.3 or greater must be installed.

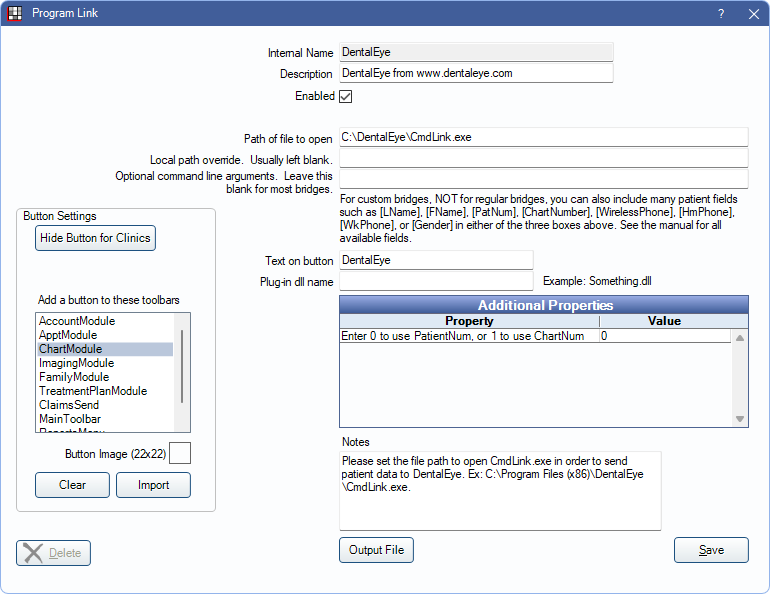

Bridge Setup
Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:
- Enabled: Check to enable this bridge.
- Path of file to open: The location of the program executable. Defaults to C:\DentalEye\CmdLink.exe
- Additional Properties: Double-click a field to enter necessary additional properties:
- Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
- Button Settings:Determine the visual behavior of the bridge button.
- Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
- Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
- Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).
Click Save to keep changes.
