In the Main Menu, click Setup, Program Links. Double-click on DBSWin.

DBSWin is a digital imaging software. Website: http://www.airtechniques.com/product/dbswin-imaging-software/.

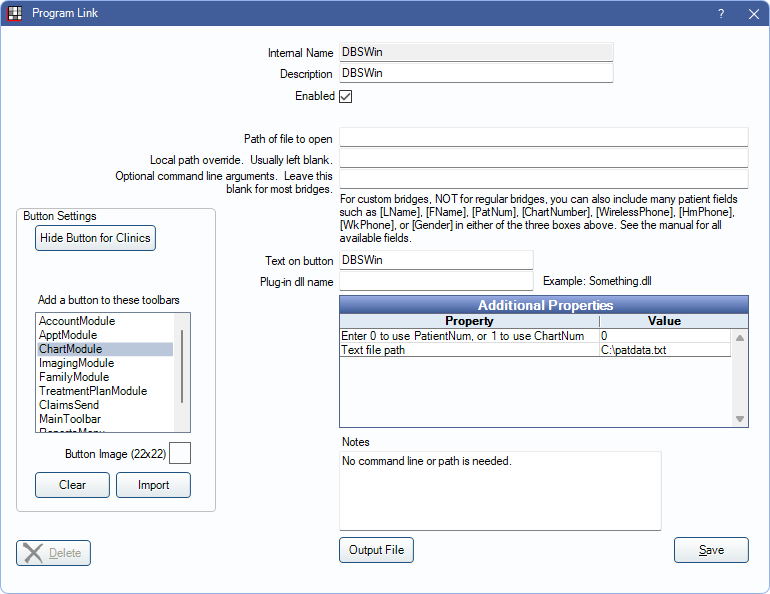

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Additional Properties: Double-click a field to enter necessary additional properties:
  • Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
  • Text file path: Verify the file path. By default this is C:\patdata.txt
• Button Settings:Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.

Troubleshooting

DBSWin must be opened and running in the background for the bridge to launch.

If experiencing any file errors using this bridge, try running Open Dental and/or DBSWin as an administrator.

If DBSWin is not switching patients as expected, patients may need to have their Date of Birth entered in Edit Patient Information.
