In the Main Menu, click Setup, Program Links. Double-click on CaptureLink from www.henryschein.ca.

CaptureLink / SafeCom Image is a digital imaging software. Website: hsdigitalsolutions.wordpress.com.

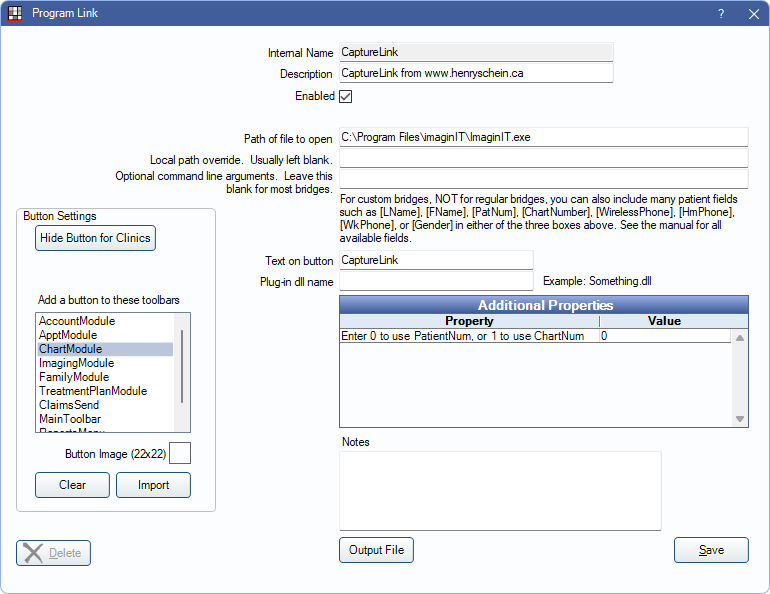

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Path of file to open: The location of the program executable. Defaults to C:\Program Files\imaginIT\imaginIT.exe
• Additional Properties: Double-click a field to enter necessary additional properties:
  • Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
• Button Settings:Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.

Technical Details

When launching CaptureLink, the patient last name, first name, and patient / chart number is copied to the computer's clipboard.

An alternate Path of file to open may be: C:\Program Files (x86)\Henry Schein Canada\SafeCom Image\imaginit.exe
