In the Main Menu, click Setup, Program Links. Double-click on CADI from www.cadi.net.

CADI is an imaging software. It is a re-branded version of MediaDent Bridge. Website: cadi.net

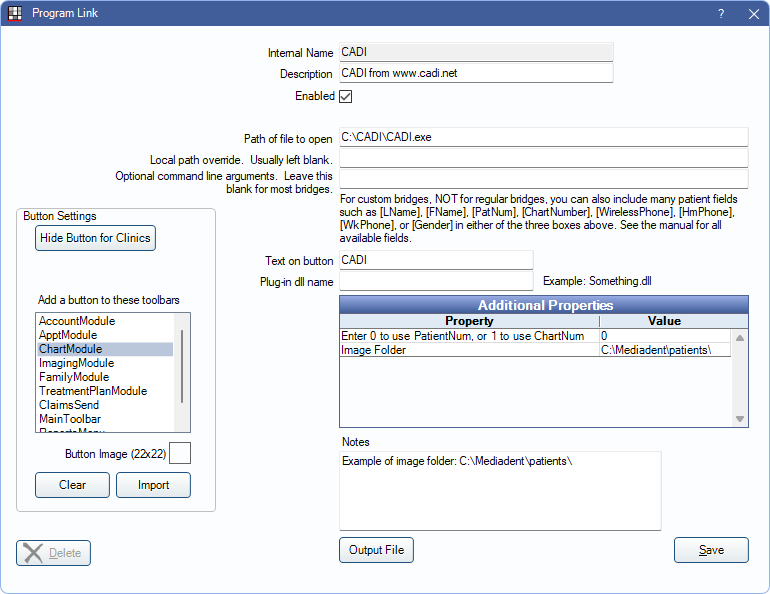

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Path of file to open: The location of the program executable. Defaults to C:\CADI\CADI.exe
• Additional Properties: Double-click a field to enter necessary additional properties:
  • Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
  • Image Folder: Verify that this is the path where images are stored.
• Button Settings:Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.

Technical Details

CADI version 6.10.x is MediaDent version 4.
