In the Main Menu, click Setup, Program Links. Double-click on AudaxCeph.

AudaxCeph is an x-ray analysis software. Website: http://www.audaxceph.com/.

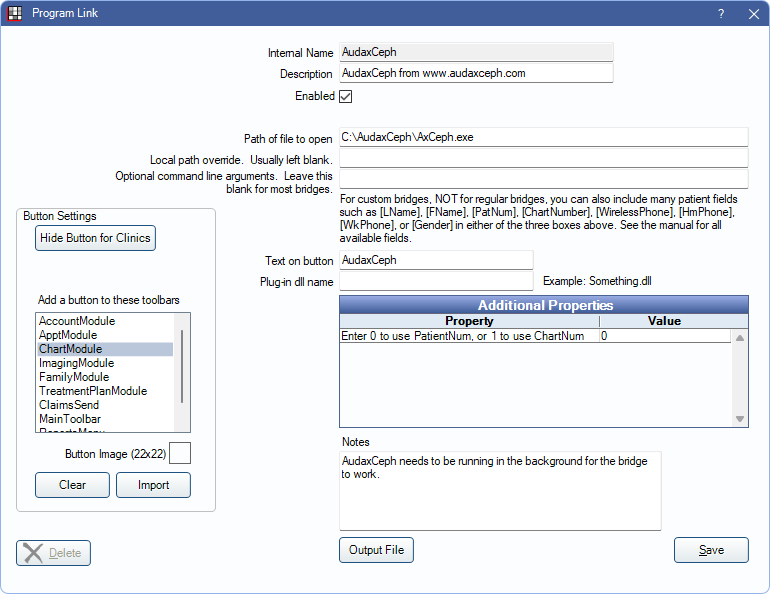

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are displayed below.

• Enabled: Check to enable this bridge.
• Additional Properties: Double-click the field to choose whether PatNum or ChartNum is used when launching the bridge. Use the PatNum (enter 0) or ChartNum (enter 1) as the patient ID.
• Text on button: (Optional) Enter the text that is displayed for the bridge button.
• Button Settings:Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.

The AudaxCeph bridge must be open to use the bridge button in Open Dental. If a patient is selected in Open Dental, but AudaxCeph is already open with a different patient selected, clicking the bridge button does not change the patient.

Technical Details

Because of the AudaxCeph bridge, the following occurs:

Patient Status: Every patient opened in AudaxCeph has a patient status of active, even if a different patient status (e.g., deceased, inactive) has been selected on the Edit Patient Information window in Open Dental.

Gender: There are four gender selections in Open Dental (male, female, other, unknown) and only two in AudaxCeph (male, female). All unknown or other genders in Open Dental are translated to a male gender in AudaxCeph.

When the bridge is enabled, Open Dental creates an update.xml file in the installation folder which AudaxCeph reads from.
