Apteryx XVWeb Bridge
In the Main Menu, click Setup, Program Links. Double-click on XVWeb from www.apteryx.com/xvweb.
Apteryx XVWeb is a web-based imaging application. Website: http://www.apteryx.com/xvweb.

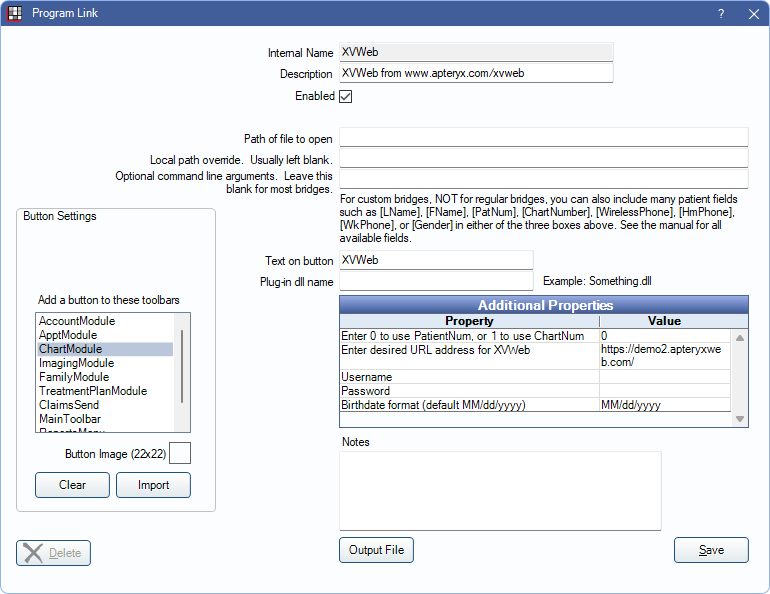

Bridge Setup
Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:
- Enabled: Check to enable this bridge.
- Additional Properties: Double-click a row to change settings.
- Use the PatNum (enter 0) or ChartNum (enter 1) as the patient ID.
- Enter the custom XVWeb URL.
- Button Settings:Determine the visual behavior of the bridge button.
- Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
- Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
- Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).
Click Save to keep changes.
The Apteryx XVWeb application may require login credentials each time the bridge is launched.
