Bridge - CleaRay

CleaRay is USB intraoral x-ray imaging technology. See CleaRay Website.

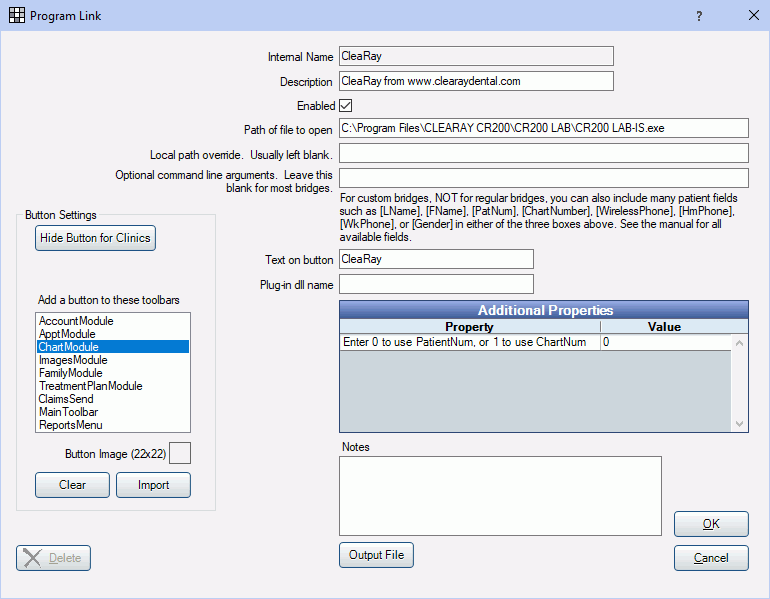

To activate the bridge:

  1. In the Main Menu, click Setup, Program Links. Double click on CleaRay.
  2. Check the Enabled box.
  3. Verify the Path of file to open.
  4. Double click on Additional Properties to change settings.
    • You can use the PatNum (enter 0) or ChartNum (enter 1) as the patient ID.
  5. Enter the text on button.
  6. Choose the module where the toolbar button will show.
  7. (Optional) Import an image to show on the button. The image must be 22 x 22 pixels.
  8. Click OK. You will now have a button for CleaRay in your Chart module toolbar.

Technical Details
We bridge by command line with the parameters being:
/ID:"123" /LN:"PatLN" /N:"PatFN"

Where 123 is the patient's PatNum or ChartNum (depending on the program property), PatLN is the patient's last name, and PatFN is the patient's first name.
